grid布局

1. 拖动效果

1.1. 前端代码

<Window x:Class="WpfApp10.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp10"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <Grid x:Name="MainGrid" ShowGridLines="True" Background="AliceBlue">
            <Grid.Resources>
                <Style TargetType="Button">
                    <Setter Property="Margin" Value="5"/>
                    <Setter Property="Padding" Value="10"/>
                    <Style.Triggers>
                        <Trigger Property="IsMouseOver" Value="True">
                            <Setter Property="Cursor" Value="Hand"/>
                        </Trigger>
                    </Style.Triggers>
                </Style>
            </Grid.Resources>
        </Grid>

        <!-- 拖放位置指示器 -->
        <Rectangle x:Name="DropIndicator"
                   Stroke="DarkOrange"
                   StrokeThickness="2"
                   Fill="#20FF4500"
                   Visibility="Collapsed"
                   RadiusX="5"
                   RadiusY="5"/>
    </Grid>

</Window>

1.2. 后端代码

using System.IO;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace WpfApp10
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        private Point _dragStartPosition;
        private UIElement _draggedButton;
        private int _originalRow, _originalColumn;
        private TranslateTransform _transform;
        private Button _targetButton;

        public MainWindow()
        {
            InitializeComponent();
            InitializeGrid(4, 4);
        }

        private void InitializeGrid(int rows, int cols)
        {
            MainGrid.RowDefinitions.Clear();
            MainGrid.ColumnDefinitions.Clear();

            // 创建行列定义
            for (int i = 0; i < rows; i++)
                MainGrid.RowDefinitions.Add(new RowDefinition());

            for (int i = 0; i < cols; i++)
                MainGrid.ColumnDefinitions.Add(new ColumnDefinition());

            // 添加按钮
            for (int r = 0; r < rows; r++)
            {
                for (int c = 0; c < cols; c++)
                {
                    var btn = new Button
                    {
                        Content = $"{r}-{c}",
                        Background = new LinearGradientBrush(Colors.LightBlue, Colors.SteelBlue, 45),
                        Foreground = Brushes.White
                    };

                    Grid.SetRow(btn, r);
                    Grid.SetColumn(btn, c);

                    // 事件处理
                    btn.PreviewMouseLeftButtonDown += Button_PreviewMouseLeftButtonDown;
                    btn.PreviewMouseMove += Button_PreviewMouseMove;
                    btn.PreviewMouseLeftButtonUp += Button_PreviewMouseLeftButtonUp;

                    MainGrid.Children.Add(btn);
                }
            }
        }

        private void Button_PreviewMouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            _draggedButton = sender as Button;
            if (_draggedButton == null) return;

            _dragStartPosition = e.GetPosition(MainGrid);
            _originalRow = Grid.GetRow(_draggedButton);
            _originalColumn = Grid.GetColumn(_draggedButton);

            // 初始化变换
            _transform = new TranslateTransform();
            _draggedButton.RenderTransform = _transform;

            // 捕获鼠标
            _draggedButton.CaptureMouse();

            // 设置半透明效果
            _draggedButton.Opacity = 0.7;
        }

        private void Button_PreviewMouseMove(object sender, MouseEventArgs e)
        {
            if (_draggedButton == null || e.LeftButton != MouseButtonState.Pressed) return;

            var currentPos = e.GetPosition(MainGrid);
            var offset = currentPos - _dragStartPosition;

            // 更新按钮位置
            _transform.X = offset.X;
            _transform.Y = offset.Y;

            // 更新拖放指示器
            UpdateDropIndicator(currentPos);
        }

        private void UpdateDropIndicator(Point position)
        {
            int targetRow = GetClosestRow(position.Y);
            int targetCol = GetClosestColumn(position.X);

            if (targetRow < 0 || targetCol < 0) return;

            // 获取目标单元格的位置和大小
            var cellRect = GetCellBounds(targetRow, targetCol);

            DropIndicator.Width = cellRect.Width;
            DropIndicator.Height = cellRect.Height;

            // 更新位置
            Canvas.SetLeft(DropIndicator, cellRect.Left);
            Canvas.SetTop(DropIndicator, cellRect.Top);

            DropIndicator.Visibility = Visibility.Visible;

            // 检查目标按钮
            _targetButton = FindButtonAtCell(targetRow, targetCol);
        }

        private Rect GetCellBounds(int row, int column)
        {
            double x = 0, y = 0;

            // 计算列位置
            for (int c = 0; c < column; c++)
                x += MainGrid.ColumnDefinitions[c].ActualWidth;

            // 计算行位置
            for (int r = 0; r < row; r++)
                y += MainGrid.RowDefinitions[r].ActualHeight;

            return new Rect(
                x,
                y,
                MainGrid.ColumnDefinitions[column].ActualWidth,
                MainGrid.RowDefinitions[row].ActualHeight);
        }

        private Button FindButtonAtCell(int row, int col)
        {
            foreach (UIElement child in MainGrid.Children)
            {
                if (child is Button btn &&
                    Grid.GetRow(btn) == row &&
                    Grid.GetColumn(btn) == col)
                {
                    return btn;
                }
            }
            return null;
        }

        private int GetClosestRow(double yPos)
        {
            double accumulatedHeight = 0;
            for (int i = 0; i < MainGrid.RowDefinitions.Count; i++)
            {
                accumulatedHeight += MainGrid.RowDefinitions[i].ActualHeight;
                if (yPos < accumulatedHeight)
                    return i;
            }
            return -1;
        }

        private int GetClosestColumn(double xPos)
        {
            double accumulatedWidth = 0;
            for (int i = 0; i < MainGrid.ColumnDefinitions.Count; i++)
            {
                accumulatedWidth += MainGrid.ColumnDefinitions[i].ActualWidth;
                if (xPos < accumulatedWidth)
                    return i;
            }
            return -1;
        }

        private void Button_PreviewMouseLeftButtonUp(object sender, MouseButtonEventArgs e)
        {
            if (_draggedButton == null) return;

            // 释放鼠标捕获
            _draggedButton.ReleaseMouseCapture();

            // 重置透明度
            _draggedButton.Opacity = 1;

            // 隐藏指示器
            DropIndicator.Visibility = Visibility.Collapsed;

            // 获取最终位置
            var finalPosition = e.GetPosition(MainGrid);
            int targetRow = GetClosestRow(finalPosition.Y);
            int targetCol = GetClosestColumn(finalPosition.X);

            // 有效位置检查
            if (targetRow >= 0 && targetCol >= 0 &&
               (targetRow != _originalRow || targetCol != _originalColumn))
            {
                // 执行位置交换
                if (_targetButton != null && _targetButton != _draggedButton)
                {
                    SwapButtons((Button)_draggedButton, _targetButton);
                }
                else
                {
                    MoveButtonToCell((Button)_draggedButton, targetRow, targetCol);
                }
            }
            else
            {
                // 返回原位
                AnimateToOriginalPosition();
            }

            _draggedButton.RenderTransform = null;
            _draggedButton = null;
            _targetButton = null;
        }

        private void SwapButtons(Button source, Button target)
        {
            // 交换网格位置
            int sourceRow = Grid.GetRow(source);
            int sourceCol = Grid.GetColumn(source);
            int targetRow = Grid.GetRow(target);
            int targetCol = Grid.GetColumn(target);

            Grid.SetRow(source, targetRow);
            Grid.SetColumn(source, targetCol);

            Grid.SetRow(target, sourceRow);
            Grid.SetColumn(target, sourceCol);

            // 添加交换动画
            AnimateSwap(source, target);
        }

        private void MoveButtonToCell(Button button, int row, int col)
        {
            Grid.SetRow(button, row);
            Grid.SetColumn(button, col);
            AnimateMovement(button);
        }

        private void AnimateToOriginalPosition()
        {
            var originalPosition = GetCellBounds(_originalRow, _originalColumn);
            var animation = new DoubleAnimation
            {
                To = 0,
                Duration = TimeSpan.FromMilliseconds(300),
                EasingFunction = new QuadraticEase { EasingMode = EasingMode.EaseOut }
            };

            _transform.BeginAnimation(TranslateTransform.XProperty, animation);
            _transform.BeginAnimation(TranslateTransform.YProperty, animation);
        }

        private void AnimateMovement(Button button)
        {
            var transform = new TranslateTransform();
            button.RenderTransform = transform;

            var animation = new DoubleAnimation
            {
                From = 50,
                To = 0,
                Duration = TimeSpan.FromMilliseconds(300),
                EasingFunction = new ElasticEase { Oscillations = 1, Springiness = 4 }
            };

            transform.BeginAnimation(TranslateTransform.YProperty, animation);
        }

        private void AnimateSwap(Button a, Button b)
        {
            var duration = TimeSpan.FromMilliseconds(400);

            // 动画效果
            a.RenderTransform = new TranslateTransform();
            b.RenderTransform = new TranslateTransform();

            var aAnimation = new DoubleAnimation(0, duration) { EasingFunction = new QuinticEase() };
            var bAnimation = new DoubleAnimation(0, duration) { EasingFunction = new QuinticEase() };

            a.RenderTransform.BeginAnimation(TranslateTransform.XProperty, aAnimation);
            a.RenderTransform.BeginAnimation(TranslateTransform.YProperty, aAnimation);
            b.RenderTransform.BeginAnimation(TranslateTransform.XProperty, bAnimation);
            b.RenderTransform.BeginAnimation(TranslateTransform.YProperty, bAnimation);
        }
    }
}

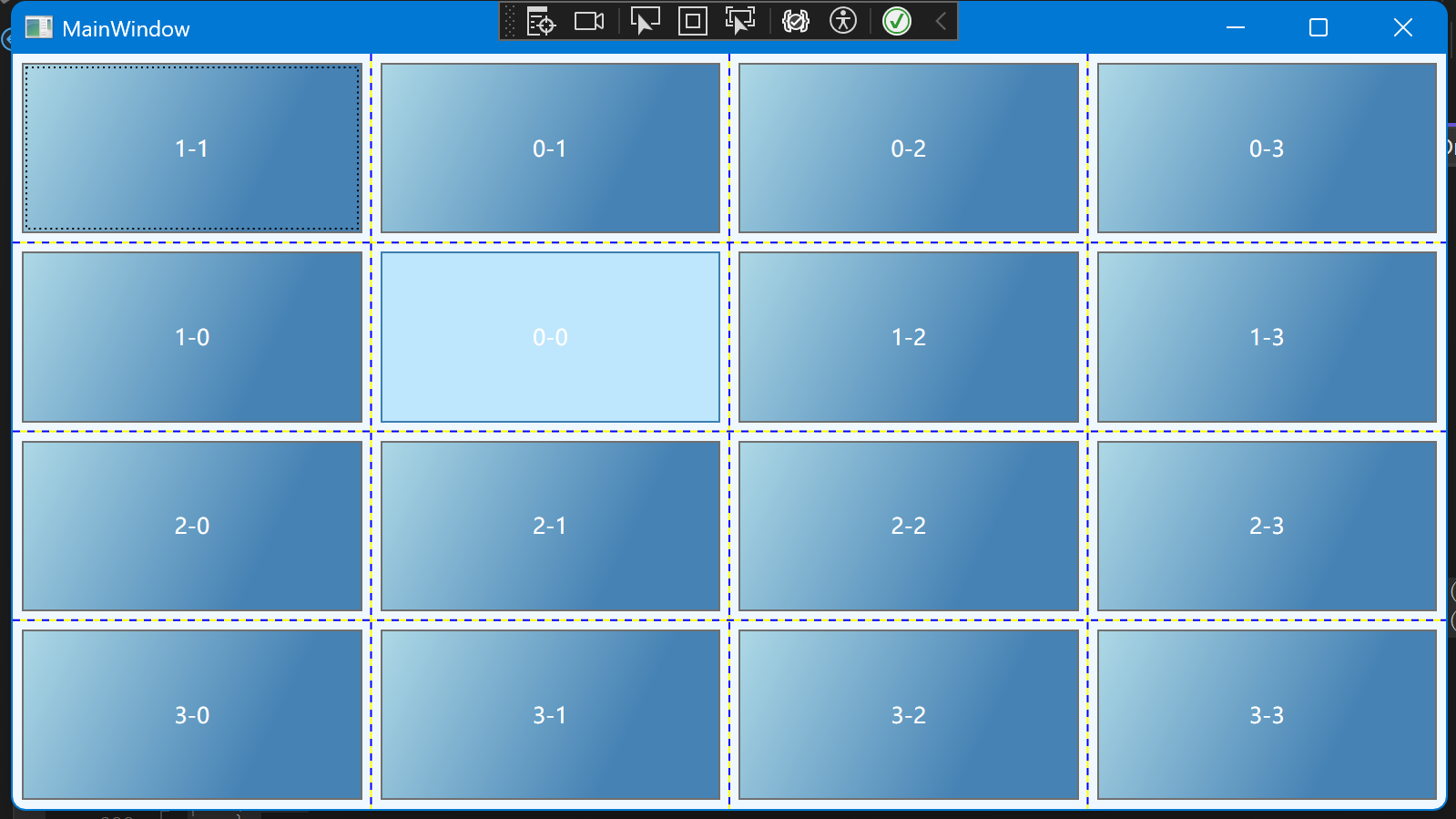

1.3. 效果图

alt text
